Genzler Amplification Kinetix 800

• Brand: Genzler Amplification

• Model: Kinetix 800

Six Stage, Class A, Tube Preamp (3 x 12AX7 running @ 300V Plate Voltage).

• Power Output: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms

• Power Amp Type: Class D

• Minimum Total Ohms Load: 2.67 Ohms

• 1/4” Input jack feeds directly to the 1st tube stage and has a 1Meg Ohm input impedance

• MUTE / ON / BOOST SWITCH — Boost adds 8dB of gain in the 2nd tube stage.

• GAIN / VOLUME CONTROLS

• LEAN / FAT / THICK SWITCH – Sets the tonal foundation of the tube preamp, adjusting the HPF and response curves, along with how a tube amp reacts to various cabinet signatures.

• TUBE DRIVEN EQ NETWORK – Five band all tube driven EQ section

• BASS —  +/- 13dB boost/cut shelving curve with a corner frequency of 70 Hz

• LO-Mid —  +/- 10dB boost/cut at 250 Hz

• MID —  +6/-11dB cut at 575 Hz.

• HI MID —  +/- 11dB boost/cut at 2.3 KHz

• TREBLE —  + / – 16dB Boost/cut shelving curve with a corner frequency of 5KHz

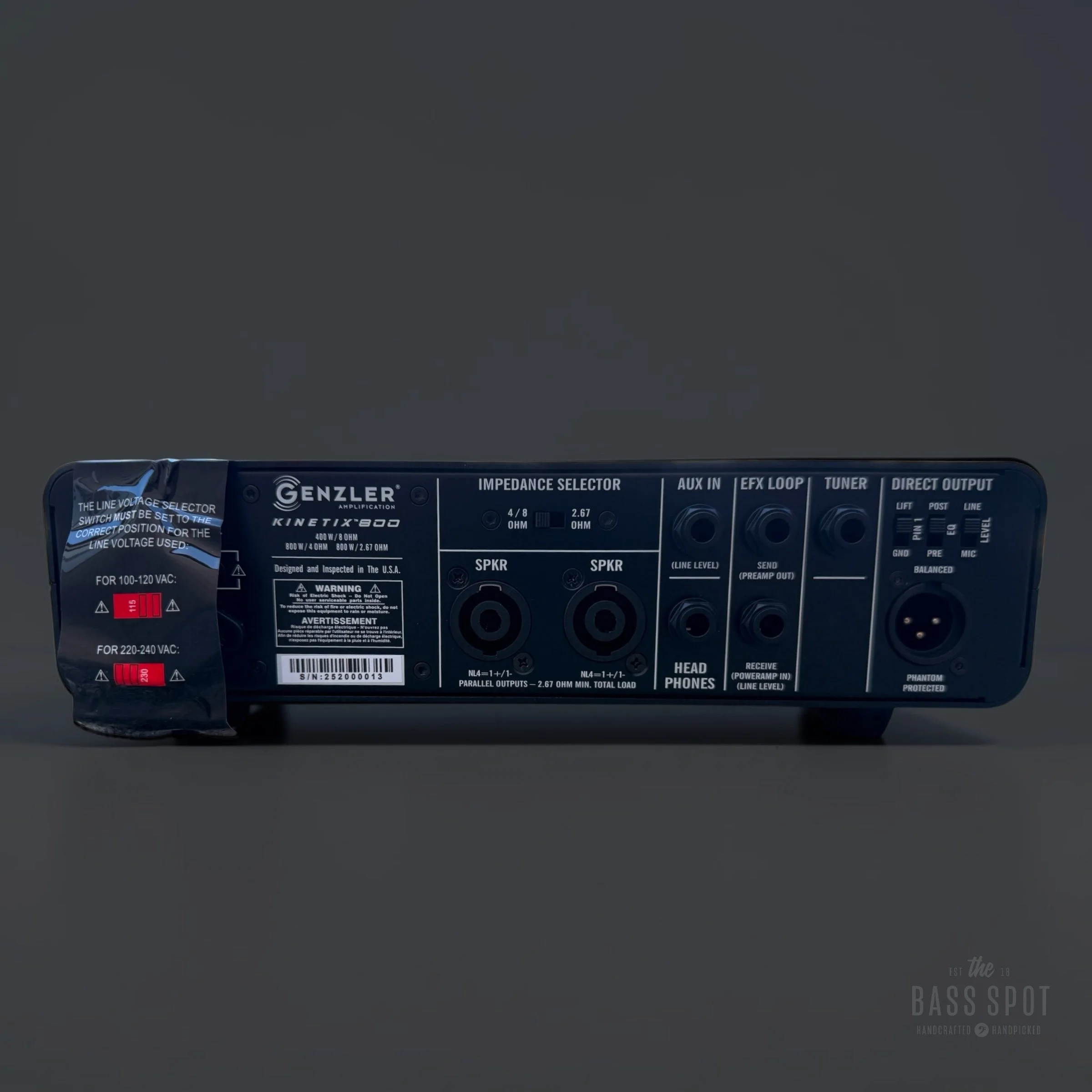

• IEC jack

• Impedance selector switch

• Speakon jacks (2)

• 1/4” Auxillary Input

• 1/4” headphone jack,

• FX loop send

• FX loop return

• 1/4” auxillary in

• 1/4” tuner out

• DI ground lift switch

• DI pre/post EQ switch

• Line/mic level switch

• XLR DI jack

• Weight: 7.25 lbs

• Dimensions: 3.25”H X 11.25”W X 11.375”D
